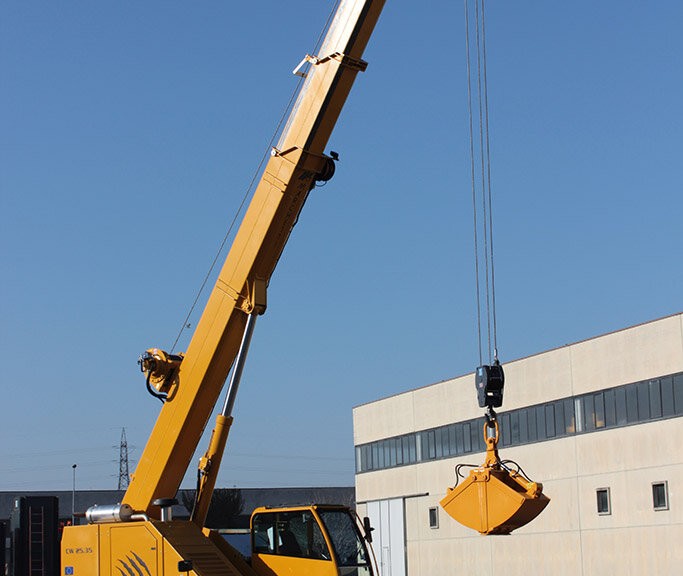

Marchetti Crawler Crane

crawler-crane-cw-2535-sherpina-boom-marchetti
Description CW25.35 CW45.32 CW55.40 CW65.40 CW70.42
Ground pressure  0.57 kg/cm² 0.60 kg/cm² 0.69 kg kg/cm² 0.79 kg/cm² 0.74 kg/cm²
Telescopic boom 6.6 m – 25.1 10 m – 32 m 10.3 m – 40 m 10.3 m – 40 m 6.72 m x 6.72 m
Max height from ground 27 m 34.5 m 42.5 m 42.5 m 45 m
Max height with jib 35m 49 m 57 m 57 m 58.5 m
Diesel engine power 129 kw @ 2,200rpm 129 kw @ 2,200rpm 129 kw @ 2,200rpm 129 kw @ 2,200rpm 168 kw @ 2,200rpm
Total mass 25,000 kg 41,000 kg 52,800 kg 60,800 kg 56,500 kg
Width (with closed tracks) 2.5 m 2.98 m 2.98 m 2.98 m 2.98 m
Crane engine  Perkins Perkins Perkins Perkins Perkins
Boom length 6.6 – 25.1 m 10 – 32 m 10.3 – 40 m 10.3 – 40 m 11.2 – 42 m
Counterweight  10 Ton 14.5 Ton 14.5 Ton 9 Ton
Total weight 25 Ton 41 Ton 52.8 Ton 60.8 Ton 56.5 Ton
Main winch speed 0 – 100 m/min 0 – 100 m/min 0 – 100 m/min 0 – 100 m/min 0 – 90 m/min
Swing speed  0 – 1.6 minˉ¹ 0 – 2 minˉ¹ 0 – 1.5 minˉ¹ 0 – 1.5 minˉ¹ 0 – 2.5 minˉ¹
Boom extends speed 6.6 – 25.1 m in 95s 10 – 32 m in 90s 10.3 – 40 m in 100s 10.3 – 40 m in 100s 11.2 – 42 m in 80s
Rope 14 mm 14 mm 16 mm 16 mm 18 mm



SH601

JINTAI SH60 Rotary Rig

Model SH60
Overall Height (m) 34.128
Rotary Torque (kNm) 600
Max. Drill Depth (m) [Interlock/Friction] 90/125
Operating weight (Ton) 189
Crowd Cylinder Stroke (mm) 6,000
Crowd Force (Push/Pull) (kN) 400/480
Main Winch – Line Pull (kN) 700
Rope Diameter (mm) 46
Auxiliary Winch – Line Pull (kN) 110
Rope Diameter (mm) 18
Engine Model CAT C18 – Tier 3
Engine Output (kW/rpm) 470/2,100

JINTAI SH50 Rotary Rig

Model SH 50
Overall Height (m) 31.418
Rotary Torque (kNm) 500
Max. Drill Depth (m) [Interlock/Friction] 80/120
Operating weight (Ton)  170
Crowd Cylinder Stroke (mm) 6,000
Crowd Force (Push/Pull) (kN) 400/480
Main Winch – Line Pull (kN) 550
Rope Diameter (mm) 40
Auxiliary Winch – Line Pull (kN) 110
Rope Diameter (mm) 18
Engine Model  CAT C15 – Tier 3
Engine Output (kW/rpm) 403/1,900
canva-photo-editor

JINTAI SH46 AW Rotary Rig

Model SH46AW
Overall Height (m) 31.39
Rotary Torque (kNm) 460
Max. Drill Depth (m) [Interlock/Friction] 80/120
Operating weight (Ton)  140
Crowd Cylinder Stroke (mm) 6,000
Crowd Force (Push/Pull) (kN) 400/480
Crowd Winch Stroke (mm) 11,000
Crowd Force (Push/Pull) (kN) 460/460
Main Winch – Line Pull (kN) 500
Rope Diameter (mm) 40
Auxiliary Winch – Line Pull (kN) 110
Rope Diameter (mm) 18
Engine Model  QSX15 – Tier 3
Engine Output (kW/rpm) 380/1,800

JINTAI SH39 W Rotary Rig

Model SH39 W
Overall Height (m) 27.02
Rotary Torque (kNm) 390
Max. Drill Depth (m) [Interlock/Friction] 76/93
Operating weight (Ton)  115
Crowd Cylinder Stroke (mm) 6,000
Crowd Force (Push/Pull) (kN) 300/300
Crowd Winch Stroke (mm) 10,000
Crowd Force (Push/Pull) (kN) 300/300
Main Winch – Line Pull (kN) 450
Rope Diameter (mm) 40
Auxiliary Winch – Line Pull (kN) 75
Rope Diameter (mm) 18
Engine Model  QSM11 – Tier 3
Engine Output (kW/rpm) 299/1,900
SH36 C

JINTAI SH36 C Rotary Rig

Model SH36 C
Overall Height (m) 27
Rotary Torque (kNm) 360
Max. Drill Depth (m) [Interlock/Friction] 80/108
Operating weight (Ton)  100
Crowd Cylinder Stroke (mm) 6,000
Crowd Force (Push/Pull) (kN) 300/300
Crowd Winch Stroke (mm) 10,000
Crowd Force (Push/Pull) (kN) 300/300
Main Winch – Line Pull (kN) 360
Rope Diameter (mm) 36
Auxiliary Winch – Line Pull (kN) 75
Rope Diameter (mm) 18
Engine Model  QSM11-Tier 3
Engine Output (kW/rpm) 299/1,900

JINTAI SG100 Hydraulic Grab

Model SG100
Mast height (m) 20.962
Grab in highest position (m) 5,500
Wall width (mm) 1.0 – 3.0
Wall depth (m) 116
Max pull up force (kN) 800
Single line pull of winch(kN) 2×400
Hydraulic system (L/min)(Mpa) 2×435  (35)
Engine model (Cummins) QSX15-Tier3
Engine output (kW/rpm) 380/1,800
Undercarriage JT100
Length (mm) 6,365
Width (mm) (Retractable) 3,500 – 5,000
Shoe size (mm) 900
Self-weight (w/o the grab) (Ton) 138
Weight of the grab (Ton) 29 – 45

JINTAI SG90 Hydraulic Grab

Model SG90
Mast height (m) 20.96
Grab in highest position (m) 4,500
Wall width (mm) 0.8 – 2.5
Wall depth (m) 90
Max pull up force (kN) 700
Single line pull of winch(kN) 2×350
Hydraulic system (L/min)(Mpa) 2×435  (35)
Engine model (Cummins) QSX15
Engine output (kW/rpm) 380/1,800
Undercarriage JT100
Length (mm) 6,365
Width (mm) (Retractable) 3,500 – 5,000
Shoe size (mm) 900
Self-weight (w/o the grab) (Ton) 130
Weight of the grab (Ton) 28 – 40

JINTAI SG70 A Hydraulic Grab

Model SG70 A
Mast height (m) 18.37
Grab in highest position (m) 550
Wall width (mm) 0.8 – 1.5
Wall depth (m) 80
Max pull up force (kN) 700
Single line pull of winch(kN) 350
Hydraulic system (L/min)(Mpa) 2×380  (36)
Engine model (Cummins) QSM11-Tier3
Engine output (kW/rpm) 266/1,900
Undercarriage JT90
Length (mm) 6,020
Width (mm) (Retractable) 3,450 – 4,600
Shoe size (mm) 800
Self-weight (w/o the grab) (Ton) 100
Weight of the grab (Ton) 18 – 35

JINTAI SG50 A Hydraulic Grab

Model SG50 A
Mast height (m) 18.49
Grab in highest position (m) 17.04
Wall width (mm) 300 – 1,500
Wall depth (m) 75
Max pull up force (kN) 500
Single line pull of winch(kN) 2 x 250
Hydraulic system (L/min)(Mpa) 2×380  (33)
Engine model (Cummins) QSM11 – Tier 3
Engine output (kW/rpm) 266/1,900
Undercarriage JT85
Length (mm) 5,820
Width (mm) (Retractable) 3,400 – 4,580
Shoe size (mm) 800
Self-weight (w/o the grab) (Ton) 85
Weight of the grab (Ton) 14 – 25
